fmAccounting Link (MYOB AccountRight Edition) Integration Instructions

We recommend having the following links open in separate browser tabs when testing the integration:

AccountRight Live API v2

my.MYOB Login (only for MYOB Cloud hosted files)

MYOB AccountRight Live is a hybrid product, this means that the data the API allows you to access and work with, can live either on the users computer (local computer or one on a network in their office) or it can live in the MYOB Cloud.

If you are working on a local computer or network server we recommend using the example Clearwater Pty Ltd company files that are installed as part of MYOB AccountRight. If you are working in the MYOB Cloud then you will be able to get access to the Sandbox company file that you can use for testing.

Important: please ensure you have made a backup of your production MYOB Company File/s in case you need to revert to a backup copy.

Once you have a happy with the integration you can switch over to using the actual AccountRight Company file.

Desktop API Setup

Working with the AccountRight API on your local computer (Windows only) or on a network server only takes a few minutes to setup. The API Getting Started guide discusses the differences and requirements when running on your local desktop (i.e. you have installed AccountRight on your computer you are doing the integration on) or on a network server. You will need to use different AccountRight installers depending on whether you using the local desktop or a network server:

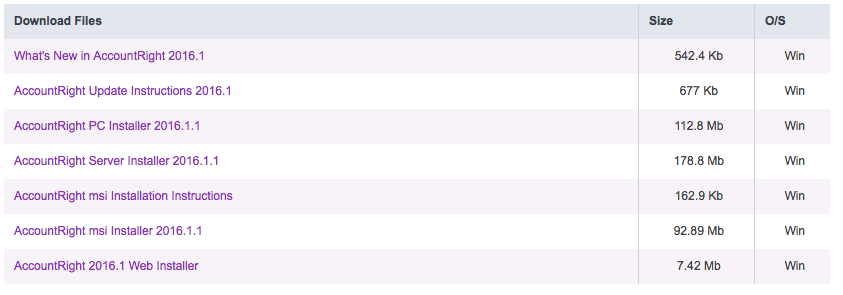

The “PC Installer” will install the API for use on the local/desktop computer. For network server installs you will need to install the “Server Installer” which will also prompt you to install the API at the same time:

Once you have successfully installed AccountRight on the local desktop or network server you are ready to connect the fmAccounting Link (MYOB AccountRight Edition) solution file to the API. Click on the MYOB COMPANY navigation button at the top of the screen which takes you to the MYOB Preferences screen where you can enter the Desktop API URL and select the Company File you wish to use:

API Type: select Desktop

Desktop API URL: if you are accessing the API on the same computer enter http://localhost:8080/accountright/. If you are accessing the API on a network server enter http://[IP ADDRESS OF COMPUTER TO ACCESS]:8080/accountright/ (for example http://192.168.1.46:8080/accountright/). Please make sure you include the trailing “/” at the end of the URL.

You can ignore all the other options at this stage. You are now ready to test that you can authenticate against the API at the specified URL. Click the Authenticate button at the top of the screen and the fmAccounting Link (MYOB AccountRight Edition) file will attempt to connect to the API. If it is successful it will return a list of the available API files installed on the localhost/network server. The Authentication TAB will look like this on Mac OS X:

and like this on Windows:

You are now ready to select which of these Company Files you wish to work with when making API requests. Click on the Company Files TAB then click the Import All Company Files button to download the list of Company Files into FileMaker:

You can now select the MYOB Company File to use from the MYOB Company File list:

We have a short video demonstrating the setup of the Desktop API settings – check out the Desktop API Setup for more details.

Cloud API Setup

Working with the AccountRight API in the MYOB Cloud requires some additional authentication steps compared to working with the desktop API.

To begin click on the MYOB COMPANY navigation button at the top of the screen which takes you to the MYOB Preferences screen where you can start the authentication process and select the Company File you wish to use:

API Type: select Cloud

Redirect URL: enter http://desktop

You can ignore all the other options at this stage. You are now ready to test that you can authenticate against the Cloud API. Click the Authenticate button at the top of the screen and the fmAccounting Link (MYOB AccountRight Edition) file will attempt to connect to the API. If it is successful it will first prompt you to login to your my.MYOB account in the Web Viewer on the Authentication TAB (N.B. if you don’t see this login screen it means that you have already previously successfully authenticated with the my.MYOB server since you first opened FileMaker Pro and you can skip to the next  step):

Enter you my.MYOB login credentials and click the Continue button. If you entered the correct my.MYOB login credentials another blank Web Viewer will appear (note the padlock icon in the bottom right hand corner of the Web Viewer):

MYOB has generated the required access tokens to use with API requests – these are hidden and not displayed on the Web Viewer. To store these in FileMaker Pro fields/variables and finish the authentication process click the Continue button again and the following dialog box will now appear confirming that you have authenticated successfully with the Cloud API:

You are now ready to select which of your available AccountRight Company Files in the Cloud you wish to work with when making API requests. Click on the Company Files TAB then click the Import All Company Files button to download the list of Company Files into FileMaker:

You can now select the MYOB Company File to use from the MYOB Company File list:

N.B. if your MYOB file is hosted in the MYOB Cloud when it comes to integrating the authentication into your existing FileMaker solution you will need to copy these 2 fields from the Interface table:

APIKey

APISecret

as well as the values contained in those fields (they are the Developer API keys for the fmAccounting Link (MYOB AccountRight Edition) solution). You can find these on the DEV Interface layout as well.

We have a short video demonstrating the setup of the Cloud API settings – check out the Cloud API Setup for more details.

Testing the API is Working Successfully

Once you have authenticated and selected the Company File you wish to use with future API requests you should make a few requests to confirm the API is working and you have authenticated correctly. A good way to do this is to download some data such as the Account Codes or Tax Codes from AccountRight to FileMaker:

1. click on the Accounts TAB on the MYOB COMPANY screen then click the Import Accounts button. The full list of Account Codes from the selected AccountRight file should be downloaded:
2. click on the Tax Codes TAB on the MYOB COMPANY screen then click the Import Tax Codes button. The full list of Tax Codes from the selected AccountRight file should be downloaded

N.B. requests to the Cloud API will typically take longer than requests to your local desktop or network server.

Once you have been able to successfully download Accounts and Tax Codes you could then try creating a Contact and Invoice in the fmAccounting Link (MYOB AccountRight Edition) solution file and pushing that to the AccountRight API. If successful you can then login to your AccountRight file using the AccountRight application on your Windows PC and confirm all the FileMaker data has come across correctly.

Once you have managed to authenticate successfully we recommend completing the following steps as you become more familiar with the fmAccounting Link file and start to look “under the hood” at the scripts, tables, relationships etc:

1. go to the General tab > Items and download the Inventory Items from AccountRight
2. you can optionally also download Contacts and Invoices
3. navigate to the Contacts section and create a new Contact then upload that to AccountRight
4. create a new Invoice for this Contact, enter a few line items and then upload that Invoice to AccountRight
5. enter a payment for the Invoice then upload that Payment to AccountRight. View the Invoice in AccountRight to confirm the Payment was uploaded

You should know be comfortable with uploading and downloading data between FileMaker and AccountRight. You can view each of the scripts in the Script Debugger as you go to see what steps are being taken – we have commented the scripts to explain each step of the process. You are now ready to tackle the integration with your own FileMaker solution.

Make sure you check out our fmAccounting Link file videos – we will be adding more videos in the coming months that demonstrate each of the modules in the fmAccounting Link file.

N.B. as we are continually updating the fmAccounting Link file the screenshots below might not look exactly the same as what you see. Please refer to your fmAccounting Link file for the latest version of these.

Step 1: Custom Functions – Copy and Paste or Import

This requires FileMaker Pro Advanced – you can either copy the Custom Functions from the fmAccounting Link file or you can import them into your solution file. If you already have any of these custom functions installed you can skip those:

Step 2: Tables – Copy and Paste or Import

This requires FileMaker Pro Advanced – you can either copy the Tables from the fmAccounting Link file or you can import them from your solution file:

Depending on your integration and your existing solution file won’t need to import all of the following tables if you already have an existing matching table:

Accounts: this stores the AccountRight Chart of Accounts records – if you already have a Chart of Accounts table you won’t need to import this

Addresses: this stores the Contact address records – if you already have a Contact Addresses table or store your Addresses in your Contacts table you won’t need to import this

Alphabet: this is used for Identifiers where you can associate letters from A-Z against a Contact

BankAccounts: this is used for the Employee Payment Details

CalculateSalesTaxTerms: this is used for the value list of possible Sales Tax calculation from selections for Item records

Categories: this stores the Categories records from MYOB

Company Files: this stores a record for each Company File that is available to authenticate with. You then select which of these Company Files you wish to use when making API requests

Contacts: this stores the Contact records (Customers and Suppliers) – if you already have a Contacts table  you won’t need to import this

Countries: this stores the Country records – if you already have a Countries table or all your Contacts and transactions are restricted to just a single Country you won’t need to import this

Employees – this stores the Employees records – if you already have a Employees table you won’t need to import this

Employees – this stores the Contact Identifier selections

Interface: this is ‘Preferences’ or ‘Settings’ table that contains a single record. If you already have a single record Preferences table you can use that.

Invoices: this stores the Invoice records – if you already have a Invoices table you won’t need to import this

Items: this stores the Inventory Item records – if you already have a Products/Price List/Inventory Items table you won’t need to import this

InvoiceItems: if you already have a Invoice Items (Invoice Line Items) table  you won’t need to import this

Navigation: this is part of the fmAccounting Link demo file and usually will not be required

Payments: this stores the Payments records (Payments for an Invoice) – if you already have a Payments table you won’t need to import this

PaymentItems: this stores the individual line items for a Payment record

PaymentTerms: this is used for the value list of possible Payment Terms

Plugins: this stores the plug-ins required by the fmAccounting Link file –  if you already have a table for plug-ins you won’t need to import this

PurchaseOrders: this stores the Purchase Order records – if you already have a Purchase Orders table you won’t need to import this

PurchaseOrderItems: if you already have a Purchase Order Items (Purchase Order Line Items) table  you won’t need to import this

Items: this stores the Inventory Item records – if you already have a Products/Price List/Inventory Items table you won’t need to import this

TaxCodes – this stores the Tax Codes records – if you already have a Tax Codes table you won’t need to import this

Timesheets: this stores the Timesheet records – if you already have a Timesheet table you won’t need to import this

TimesheetLines: if you already have a Timesheet Lines table  you won’t need to import this

TimesheetLineEntries: if you already have a Timesheet Line Entries Lines table  you won’t need to import this

PayrollCategories: this stores the Payroll Categories records – if you already have a Payroll Categories table you won’t need to import this

Step 3: Create Fields in Existing Tables

If you already have existing tables for Contacts, Invoices, InvoiceItems, Payments, PaymentItems, Products and Interface you will simply need to create the required additional fields in each of the tables if you are not going to import these tables. If you have FileMaker Pro Advanced you can use that to copy/paste the fields from the fmAccounting Link (MYOB AccountRight Edition) solution file.

Please also note the following special fields that you will need in each table that you are downloading data into and uploading data from:

_kf_MYOB_ID: each table that you download data into or upload data from will require one of these fields (e.g. _kf_MYOBAccountID, _kf_MYOBContactID and _kf_MYOBInvoiceID). These fields store the MYOB AccountRight ID (equivalent to a FileMaker Primary Key field/auto enter serial number/UUID). This allows us to update records if we detect the presence of a value in these fields, rather than creating a new record each time in AccountRight

LastAPIResult – this stores the last API request result for the current record (e.g. in Contacts, Invoices, Payments etc). It doesn’t need to be displayed on a user visible layout but it helpful to see the response from AccountRight API when troubleshooting API requests

MYOB_xxxx_JSON – this calculates the necessary JSON data structure to upload/push a FileMaker Contact record to AccountRight. This calculation will need to be updated to resolve any missing field references to reflect the structure of your solution file. You are essentially mapping the AccountRight fields to the matching FileMaker fields in Contacts, Invoices, Payments etc. Any table that pushes data from FileMaker to AccountRight will require one of these fields, e.g.:

MYOBItemInvoiceJSON

MYOBServiceInvoiceJSON

MYOBProfessionalInvoiceJSON

MYOBMiscellaneousInvoiceJSON

MYOBContactCustomerJSON

MYOBContactSupplierJSON

MYOBPaymentJSON

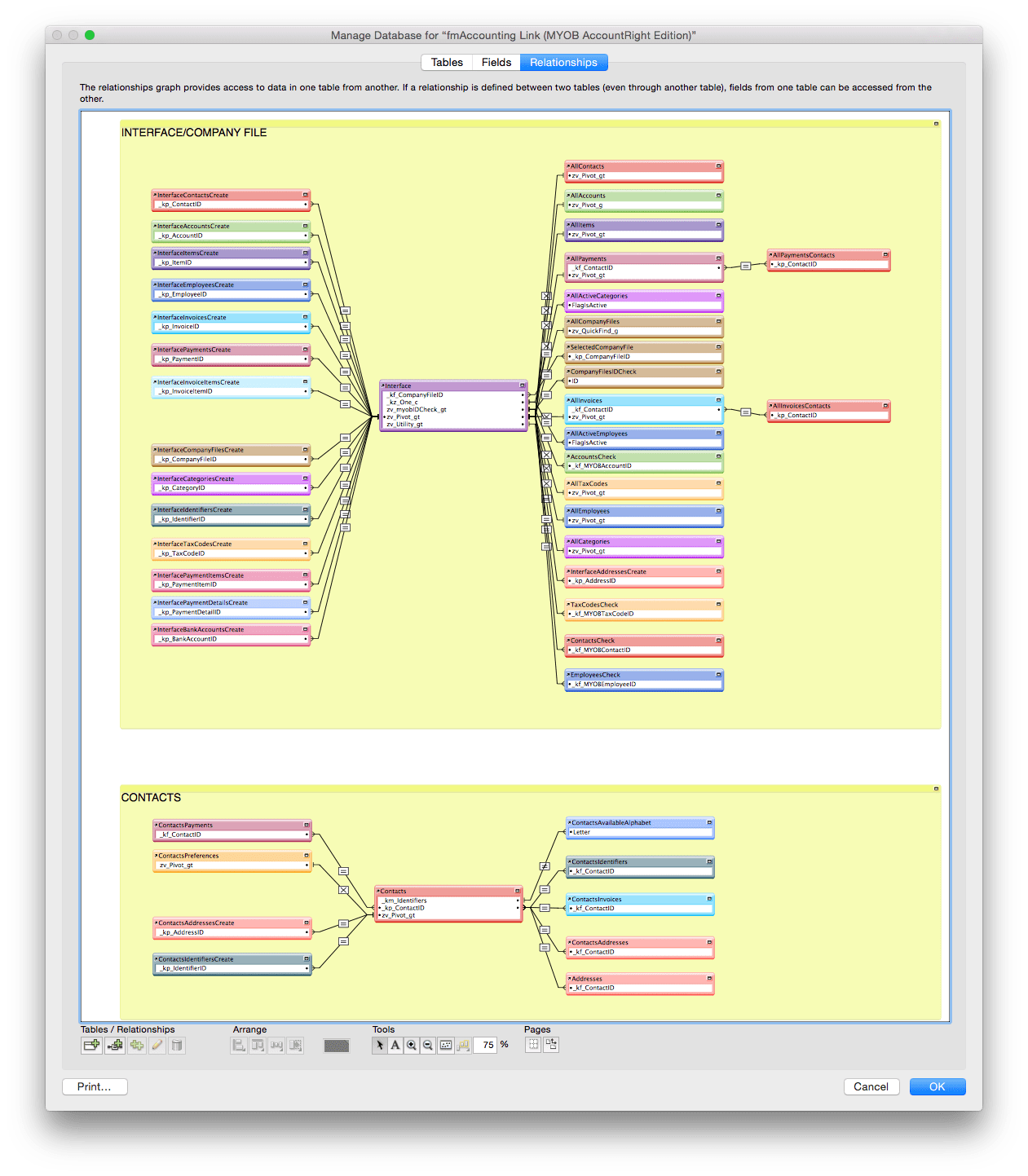

Step 4: Relationship Graph – Table Occurrences and Relationships

You will need to recreate the Table Occurrences and Relationships from the fmAccounting Link file in your solution file. Unfortunately FileMaker Pro/Advanced does not currently support copy/pasting or importing of table occurrences and relationships so these will need to be recreated manually. As with importing tables if you did not import certain tables you will not need to recreate table occurrences/relationships associated with those tables you did not import:

Step 5: Create Layouts

You will need to create any necessary layouts in your solution file with the same names as the fmAccounting Link file. If you did not import certain tables then you will not need to create layouts for those tables. At this step you are only creating the blank Layouts with the same name as in fmAccounting Link. You will be copy/pasting the layout objects/content at a later step. As we have not imported any scripts yet copy/pasting layout content would mean any buttons that reference scripts will be broken.

As you will be recreating layouts in your existing solution file we will be assuming that you will with to recreate the layouts using the same theme/style as your existing solution and not necessarily keep the layouts the same as they are in the fmAccounting Link file. The layouts in the fmAccounting Link file use the Cool Gray theme.

The “DEV” layouts are layouts designed for the developer and are kept hidden from users.

We find having the Manage Layouts window open for both the fmAccounting Link file and your solution file side by side is the quickest way to create new layouts in your solution file. You can quickly copy the Layout Name from the fmAccounting Link file, create a new Layout in your solution file and paste in the name and then select the correct table occurrence to use in the Show Records from menu.

Step 6: Scripts – Copy and Paste or Import

You can use FileMaker Pro/Pro Advanced to either copy/paste or import the scripts from the fmAccounting Link file. You should import all scripts in the following folders:

MYOB Company File

Accounts

Contacts

Items

Invoices

Payments

Purchase Orders

Categories

Employees

You can generally not import scripts in the following folders as they are used in the fmAccounting Link demo file and usually not required for your solution file:

System

Do import these script from this folder:

System Install Solution Plugins

Developer

N.B.: some of the scripts perform other scripts which include script parameters which are referenced by the calling script (e.g. when performing the authentication script step and passing the keys for the API authentication script). If you are creating these scripts yourself make sure you include the script parameters. We use the NightWing Enterprises method for passing multiple script parameters which requires the DeclareVariables custom function. You can change this to your preferred method for passing multiple script parameters as required.

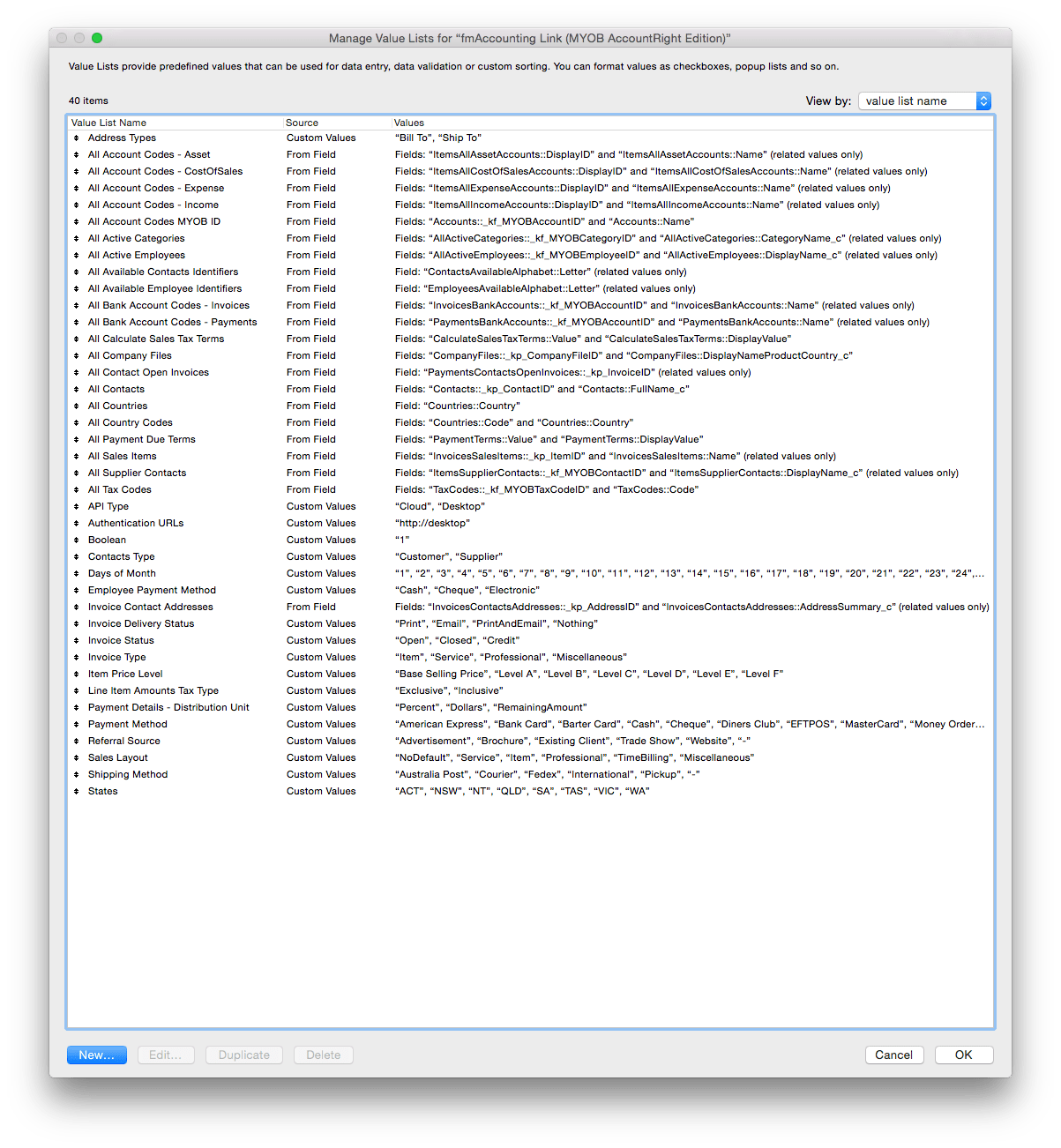

Step 7: Value Lists

You will need to recreate the Value Lists from the fmAccounting Link file in your solution file. Unfortunately FileMaker Pro/Advanced does not currently support copy/pasting or importing of Value Lists so these will need to be recreated manually:

Step 8: Layout Contents – Copy and Paste Layout Objects/Content

Now that we have the necessary value lists and scripts in your solution file you can now copy/paste the Layout objects/content from the layouts in the fmAccounting Link file. You will first need to size the layouts and layout parts to the correct sizes, or you can customise these to suit your requirements. We are assuming that you will be changing the layouts to match your existing theme and styles, but whilst you are testing the integration you can copy/paste these “as is” and once everything is working you can then come back and restyle the layouts to suit your requirements.

Step 9: OnFirstWindowOpen Script Trigger

The fmAccounting Link file has a OnFirstWindowOpen Script Trigger set via the File Menu>File Options:

The OnFirstWindowOpen Script script performs a number of functions that are specific to the fmAccounting Link file, but you may need to replicate some of this functionality in your existing OnFirstWindowOpen Script Trigger in your solution file (or set a OnFirstWindowOpen Script Trigger if you do not currently have one set). The most likely features you will need to recreate in your OnFirstWindowOpen Script Trigger include:

Ensure the BaseElements Plug-in is installed: this is handled by performing the System Install Solution Plugins script as part of the OnFirstWindowOpen Script Trigger:

Step 10: Create buttons for AccountRight API Calls

You will need to create some buttons in your existing layouts to perform the following functions (where required):

Authenticate (found on the MYOB Preferences layout)

Import Contacts (found on the MYOB Preferences Form layout)

Contacts: Push to MYOB – Current Record (found on the Contacts Form layout)

Contacts: Push to MYOB – Found Set (found on the Contacts Form layout)

Invoices: Push to MYOB – Current Record (found on the Invoices Form layout)

Invoices: Push to MYOB – Found Set (found on the Invoices Form layout)

Payments: Upload (found on the InvoicesPayments portal on the Invoices Form layout)

Purchase Orders: Push to MYOB – Found Set (found on the Purchase Orders Form layout)

Import Accounts (found on the MYOB Preferences Form layout)

Import Items (found on the MYOB Preferences Form layout)

Import Tax Codes (found on the MYOB Preferences Form layout)

Import Categories (found on the MYOB Preferences Form layout)

Items: Push to MYOB – Current Record (found on the Items Form layout)

Products: Push to MYOB – Found Set (found on the Items Form layout)

You can copy/paste these buttons from the layouts in the fmAccounting Link file.

N.B.: some of the buttons have script parameters attached to the button which are referenced by the calling script (e.g. to instruct it to upload the current record or the current found set of records). If you are creating these buttons yourself make sure you include the script parameters. We use the NightWing Enterprises method for passing multiple script parameters which requires the DeclareVariables custom function. You can change this to your preferred method for passing multiple script parameters as required.

Step 11: AccountRight API Authentication

You are now ready to start testing your integration. The first step is to ensure you can authenticate successfully with the AccountRight API. You need to recreate the functional to authenticate with either the Desktop API or the Cloud API in your solution file. Once you have successfully authenticated you can move on to the additional modules and test the scripts that you have imported to ensure they are working as expected. We recommend testing in the following order:

1. Accounts
2. Tax Codes
3. Items
4. Contacts
5. Invoices
6. Payments
7. Purchase Orders

Once you can successfully download and upload using the scripts/buttons that you have imported you are ready to go live.

Step 14: Go Live and switch from Sandbox/Clearwater Company to your live Company File

Once you have successfully tested the integration of your FileMaker solution file with the AccountRight API you can then select your live MYOB AccountRight Company File.

Version History – to see what’s new with each update check out the version history log
